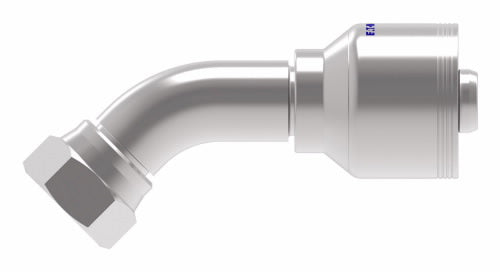

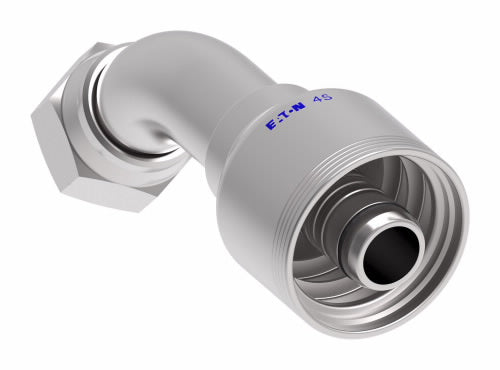

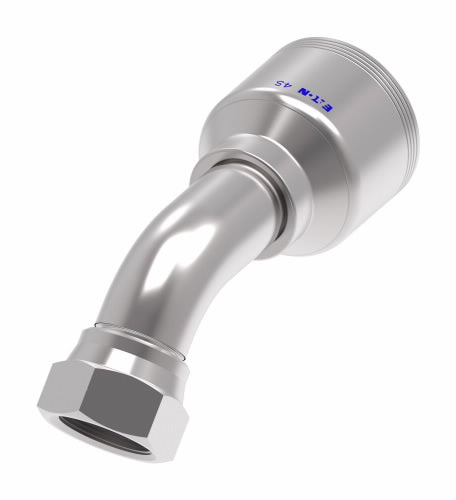

Danfoss 4S12BFA12 Conexión Danfoss 4S12BFA12 Conexión
Conexión
Danfoss
| Descripción | Ftng (perm), 4-sprl BSPP, Fem, GIR, Asiento de Cono 60 de Grados, 45 Grados Conexion |
| Mangueras Compatibles |
EC525-12 to -32; GH493-12 to FC636-12 to -32; FC736-12 to -32; FC500-12 to -24; FC273B-12,-16; GH506-12 to -32; FC254-12 to -32; EC810-12,-16; EC600-12,-16 H430-12 to -32; H430R-12 to -32; EC525-12 to -32; H471-12 to -24; H464-12 to -32; H485-16
|
| A (in) | 4,42 |
| A (mm) | 112,3 |
| D (in) | 2,99 |
| D (mm) | 75,9 |
| Gota (adentro) | 1,02 |
| Gota (milímetros) | 26 |
| Tamaño de rosca | G 3/-414 |
| Peso (libras) | 0,931 |
