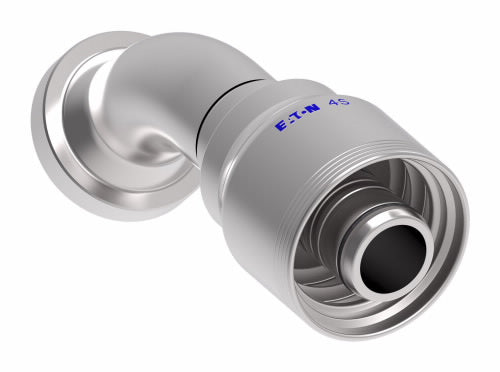

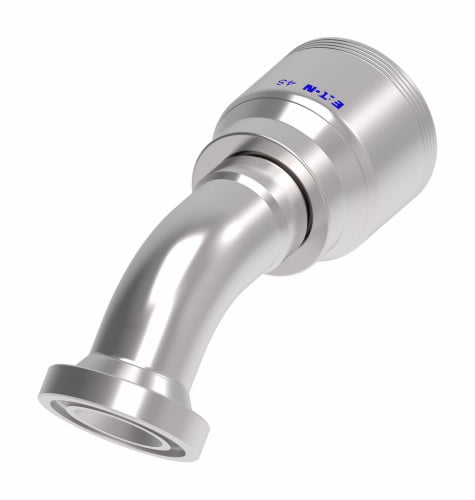

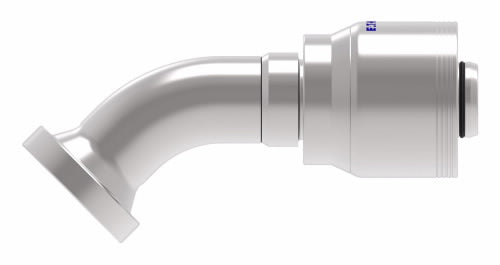

Danfoss 4S16FHA16 Conexión Danfoss 4S16FHA16 Conexión
Conexión
Danfoss
| DESCRIPCIÓN | Ftng (perm), 4-sprl, 62-flange, steel 45 |
| Mangueras compatible | EC525-12, -16, -20; GH493-12, -16, -20; FC636-12, -16, -20; FC736-12, -16, -20; FC500-12, -16; FC273-12, -16FC273B-12, -16; GH506-12, -16, -20; GH755-12, -16;FC254-12, 16, -20; EC810-12, -16; EC600-12 |
| A (in) | 5,15 |
| A (mm) | 128 |
| D (in) | 3,59 |
| D (mm) | 91,2 |
| Gota (adentro) | 1,26 |
| Gota (milímetros) | 32 |
| Peso (libras) | 1,5 |
