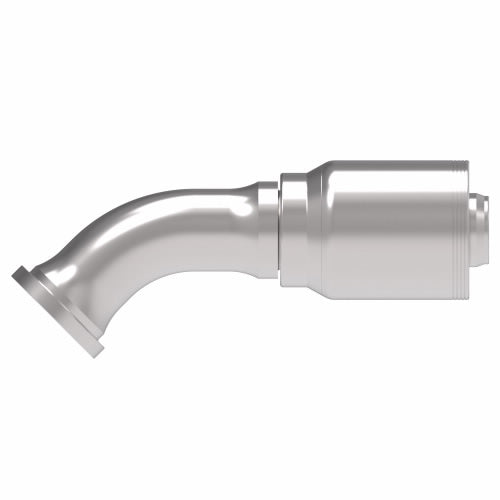

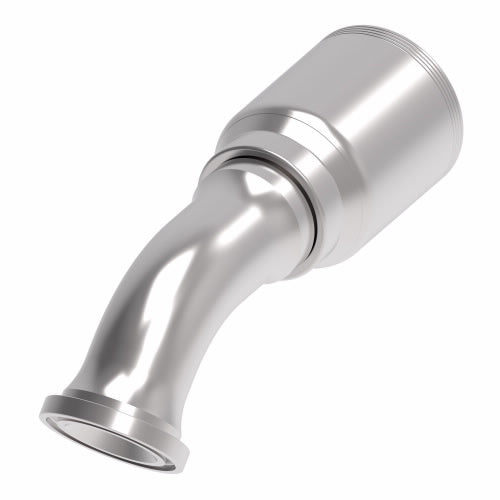

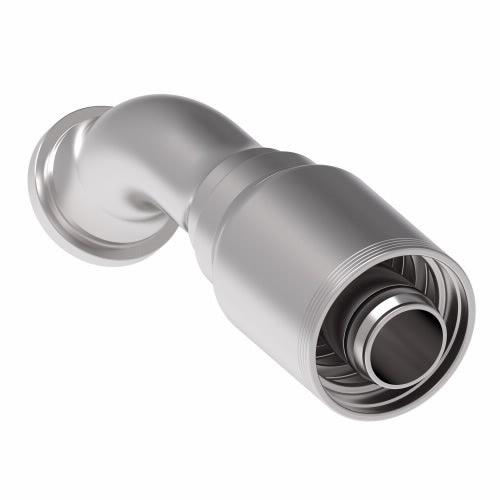

Danfoss 4S24FLA24 Conexión Danfoss 4S24FLA24 Conexión
Conexión
Danfoss
| DESCRIPCIÓN | Ftng (perm), 4-sprl CD61 SPLIT FLNG - 45 |
| Mangueras Compatibles | EC525-12 to -32; GH493-12 to -32; FC636-12 to -32; FC736-12 to -32; FC500-12 to -24; FC273B-12, -16; GH506-12 to -32; FC254-12 to -32; EC810-12, -16 |
| A (in) | 8,44 |
| A (mm) | 161,6 |
| D (in) | 5,37 |
| D (mm) | 136,3 |
| Gota (adentro) | 1,77 |
| Gota (milímetros) | 45 |
| Peso (libras) | 4,1844 |
