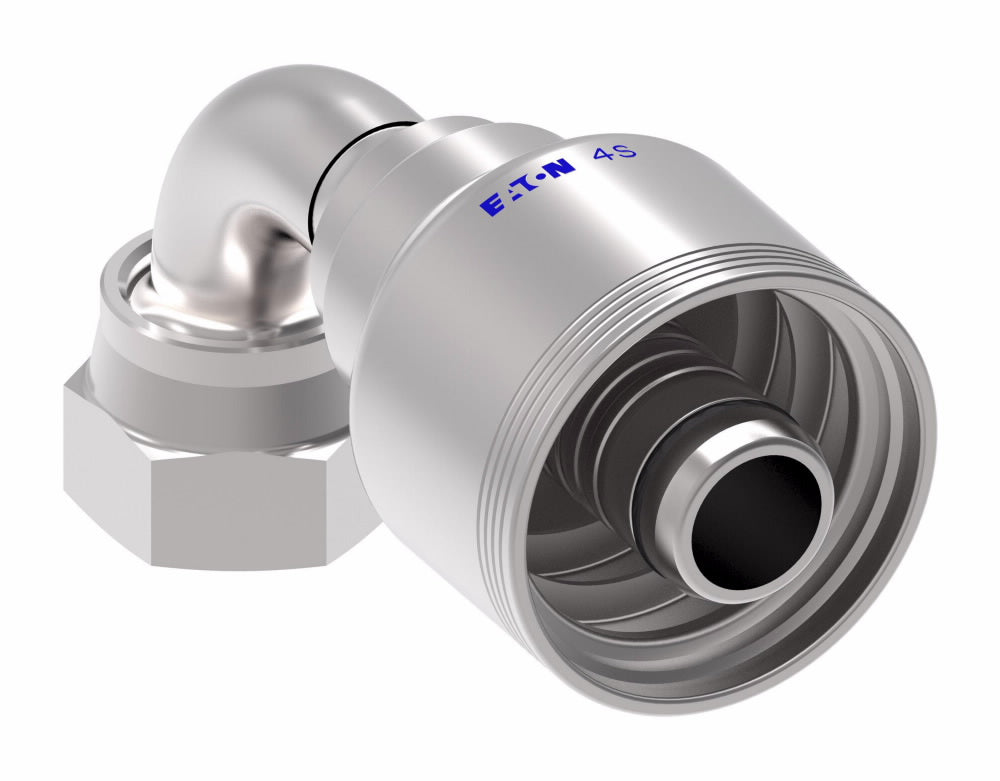

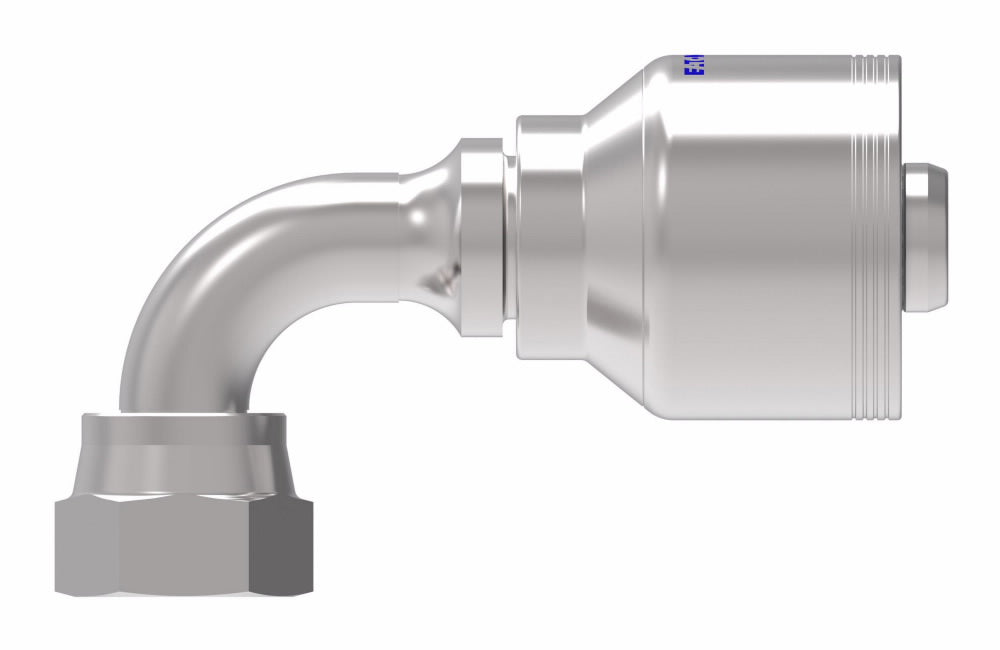

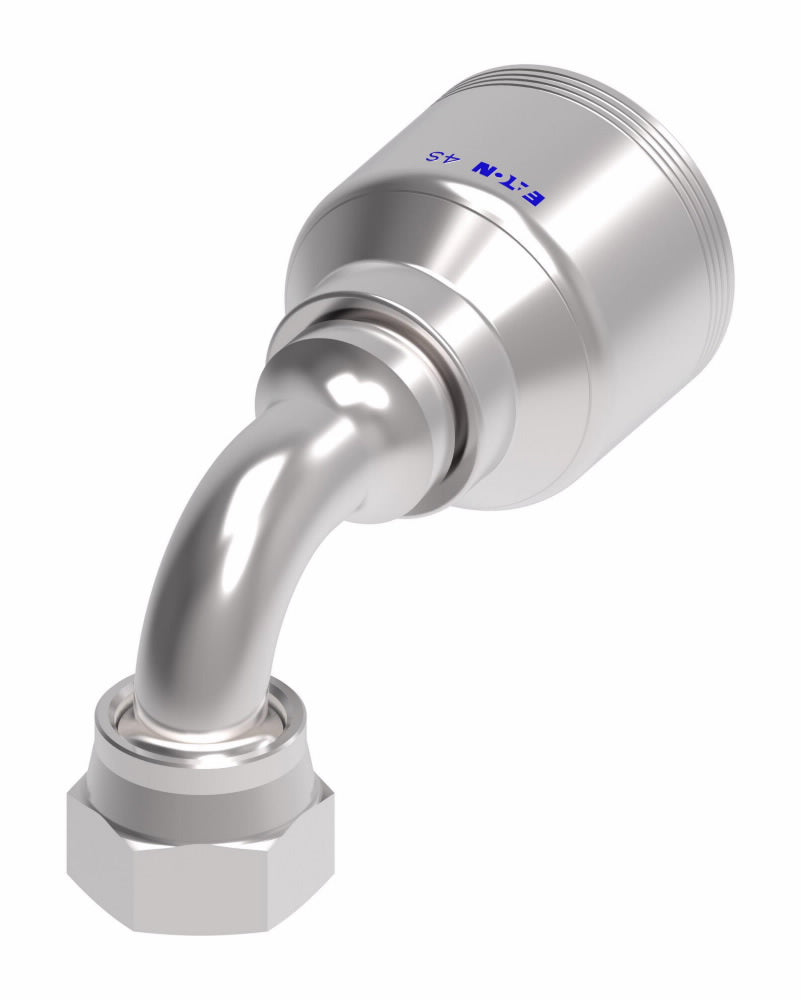

Danfoss 4SA12FRB12 Conexión Danfoss 4SA12FRB12 Conexión
Conexión
Danfoss
| Descripción | Ftng (perm) 4-sprl, ORS, Fem, 90 deg |
| Mangueras Compatibles |
EC525-12, -16, -20; GH493-12, -16, -20; FC636-12, -16, -20; FC736-12, -16, -20; FC500-12, -16; FC273-12, -16FC273B-12, -16; GH506-12, -16, -20; GH755-12, -16;FC254-12, 16, -20; EC810-12, -16; EC600-12
|
| A (in) | 4,11 |
| A (mm) | 104,4 |
| D (in) | 2,68 |
| D (mm) | 68,1 |
| Gota (adentro) | 2,28 |
| Gota (milímetros) | 58 |
| Tamaño de rosca | 1 3/16-12 |
| Peso (libras) | 1 |
