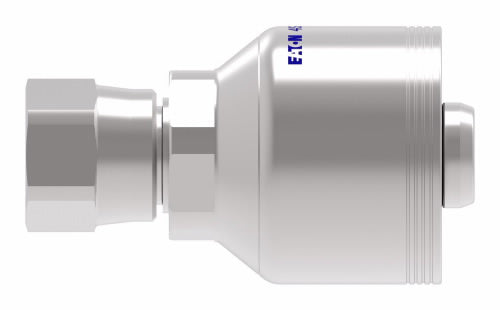

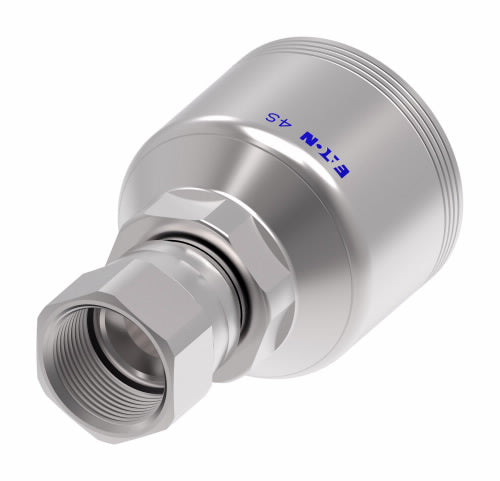

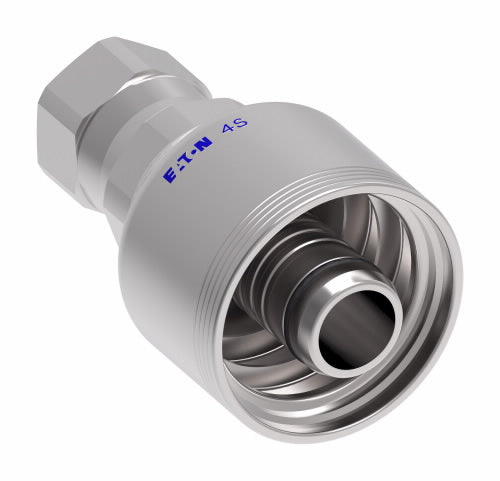

Danfoss 4SA16FJ12 Conexión Danfoss 4SA16FJ12 Conexión
Conexión
Danfoss
| DESCRIPCIÓN | Ftng (perm) 4-sprl |
| Mangueras Compatibles | EC525-12, -16, -20; GH493-12, -16, -20; FC636-12, -16, -20; FC736-12, -16, -20; FC500-12, -16; FC273-12, -16FC273B-12, -16; GH506-12, -16, -20; GH755-12, -16;FC254-12, 16, -20; EC810-12, -16; EC600-12 |
| A (in) | 3,16 |
| A (mm) | 80,2 |
| D (in) | 1,73 |
| D (mm) | 44 |
| Tamaño de rosca | 1 3/16-12 |
| Peso (libras) | 0,8 |
