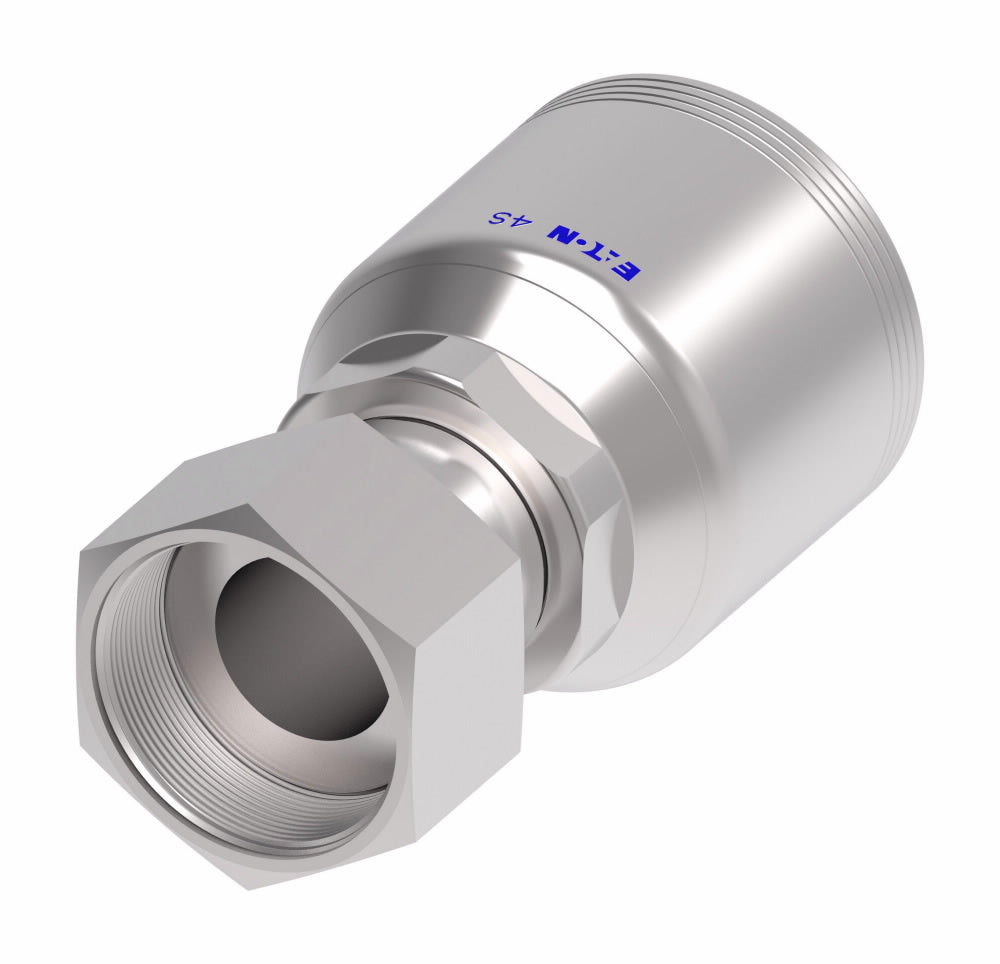

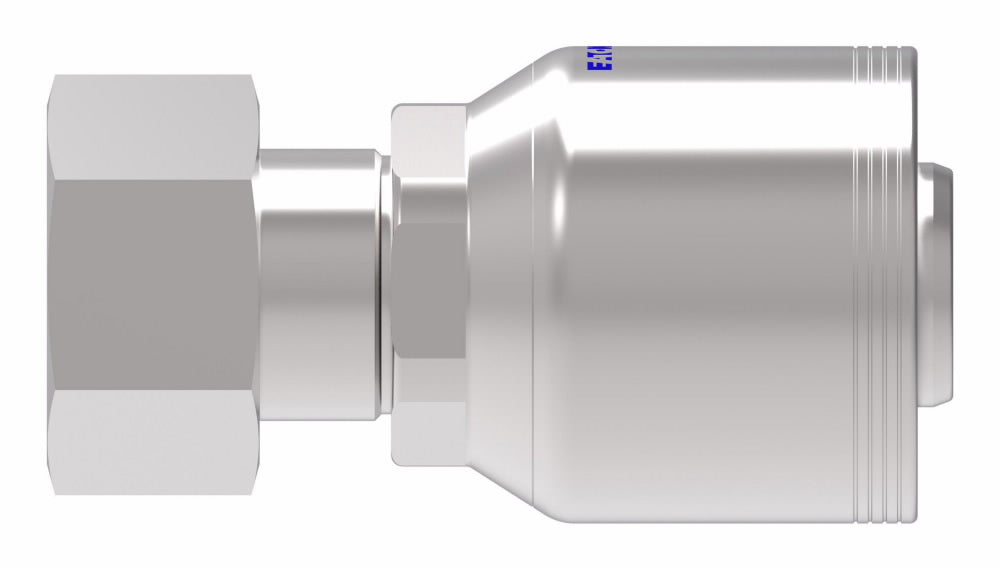

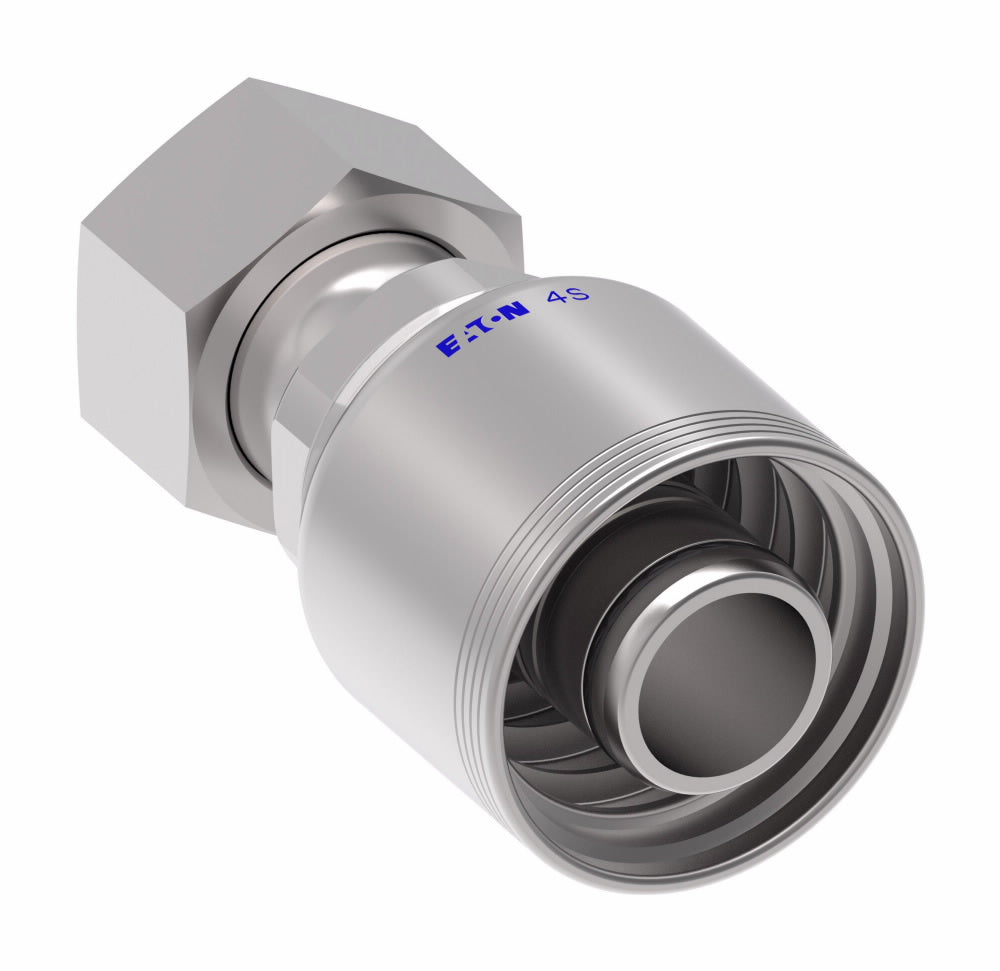

Danfoss 4SA16FR16 Conexión Danfoss 4SA16FR16 Conexión
Conexión
Danfoss
| Descripción | Ftng (perm), 4-sprl, ORS straight |
| Mangueras Compatibles | EC525-12 to -32; GH493-12 to FC636-12 to -32; FC736-12 to -32; FC500-12 to -24; FC273B-12, -16; GH506-12 to -32; FC254-12 to -32; EC810-12, -16; EC600-12, -16 H430-12 to -32; H430R-12 to -32; EC525-12 to -32; H471-12 to -24; H464-12 to -32; H485-16 |
| A (in) | 3,24 |
| A (mm) | 82,4 |
| D (in) | 1,68 |
| D (mm) | 42,6 |
| Tamaño de rosca | 1 7/16-12 |
| Peso (libras) | 1,2 |
