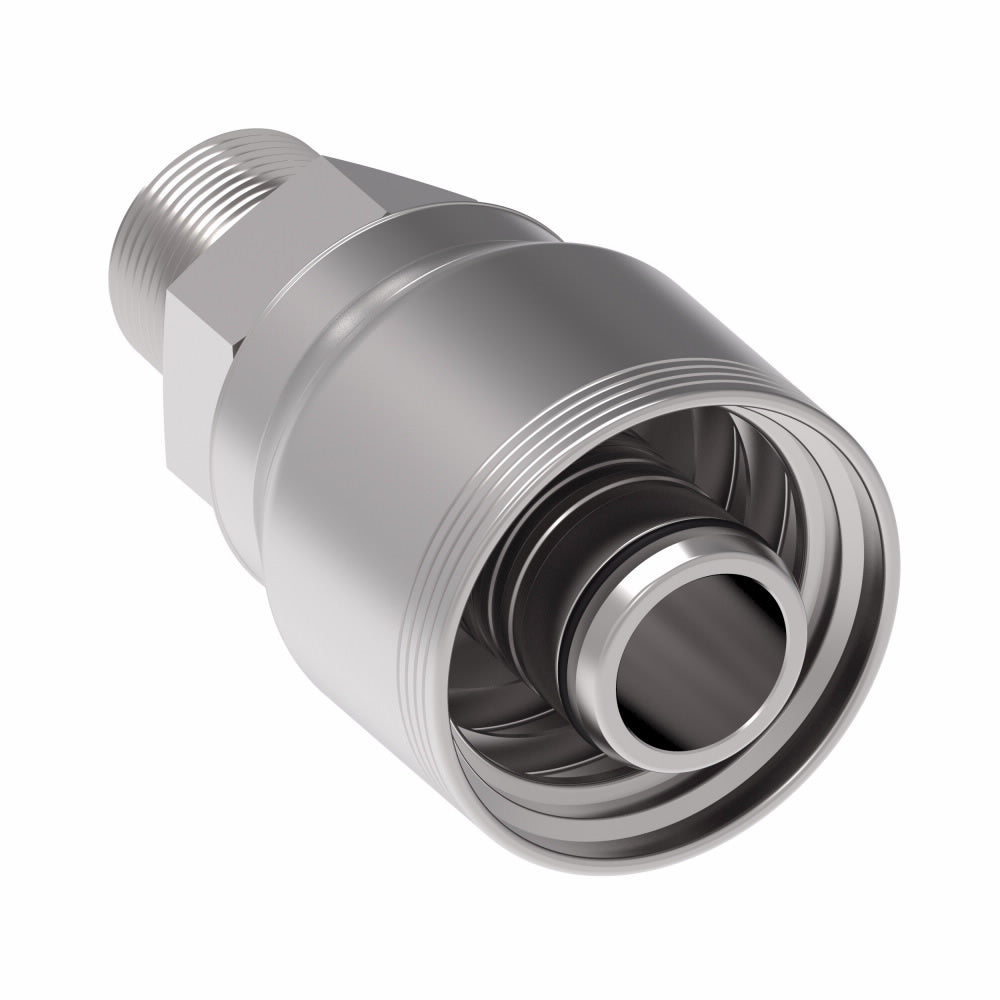

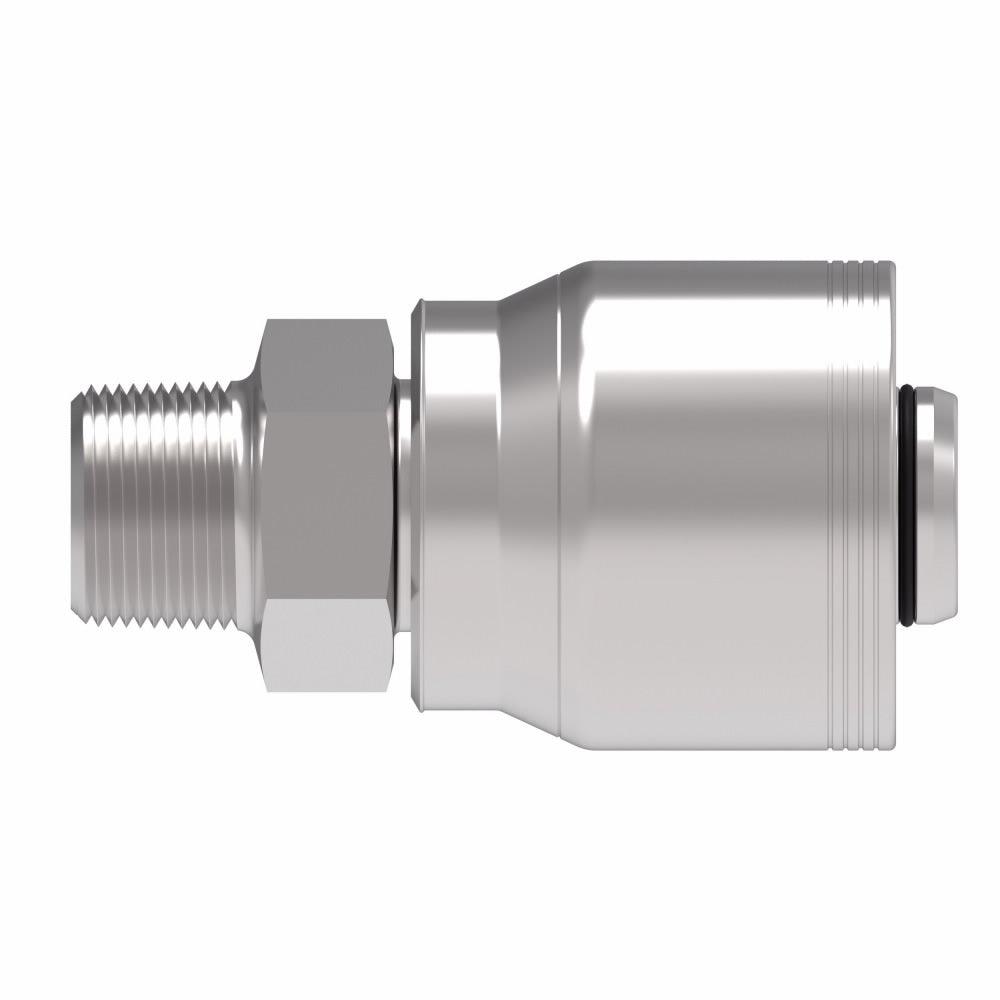

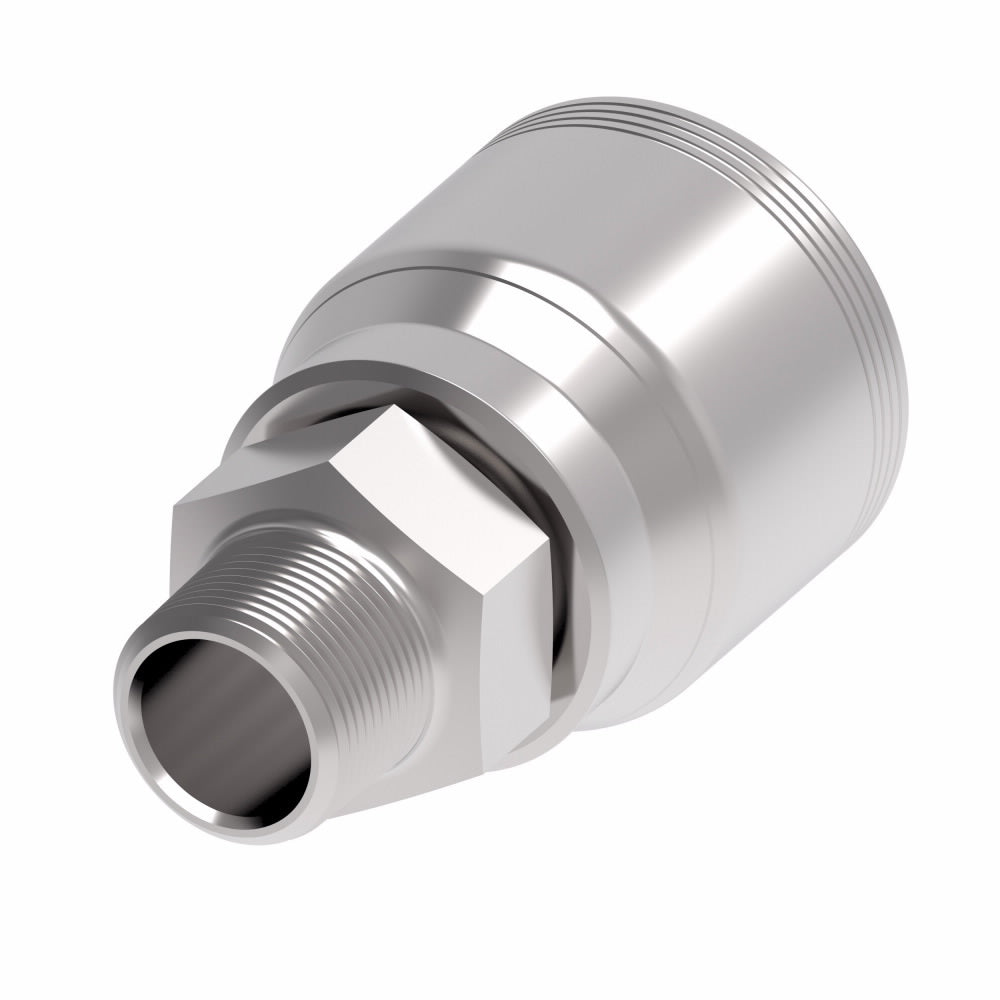

Danfoss 4SA16MP16 Conexión Danfoss 4SA16MP16 Conexión
Conexión
Danfoss
| Descripción | Ftng (perm) 4-sprl Macho |
| Mangueras Compatibles |
EC525-12, -16, -20; GH493-12, -16, -20; FC636-12, -16, -20; FC736-12, -16, -20; FC500-12, -16; FC273-12, -16FC273B-12, -16; GH506-12, -16, -20; GH755-12, -16;FC254-12, 16, -20; EC810-12, -16; EC600-12
|
| A (in) | 3,7 |
| A (mm) | 94 |
| D (in) | 2,13 |
| D (mm) | 54,1 |
| Tamaño de rosca | 1-11 1/2 |
| Peso (libras) | 1,18 |
