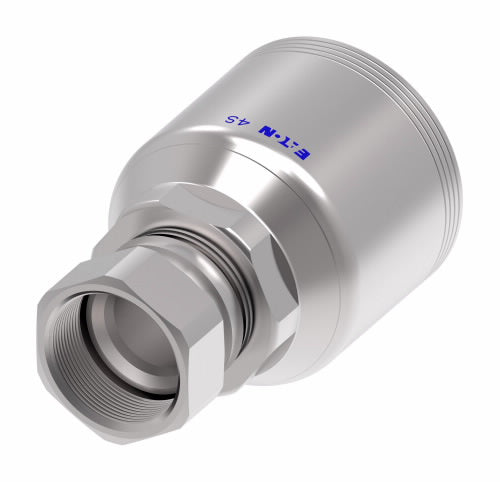

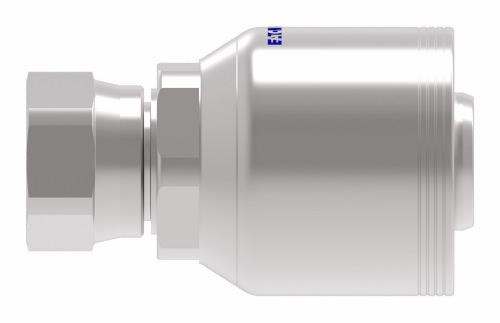

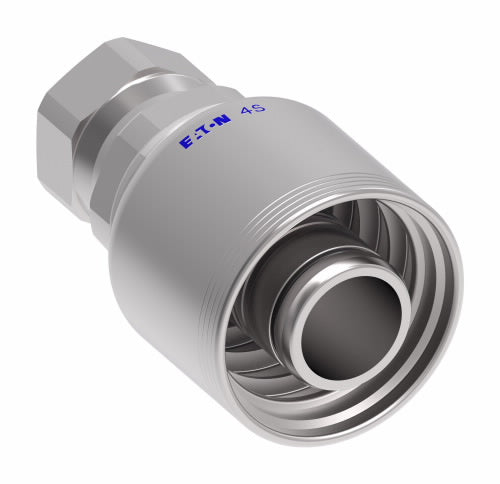

Danfoss 4SA20FJ20 Conexión Danfoss 4SA20FJ20 Conexión
Conexión
Danfoss
| DESCRIPCIÓN | Ftng (perm) 4-sprl |
| Mangueras Compatibles | EC525-12, -16, -20; GH493-12, -16, -20; FC636-12, -16, -20; FC736-12, -16, -20; FC500-12, -16; FC273-12, -16FC273B-12, -16; GH506-12, -16, -20; GH755-12, -16;FC254-12, 16, -20; EC810-12, -16; EC600-12 |
| A (in) | 4 |
| A (mm) | 101,6 |
| D (in) | 1,82 |
| D (mm) | 46,3 |
| Tamaño de rosca | 1 5/8-12 |
| Peso (libras) | 1,82 |
