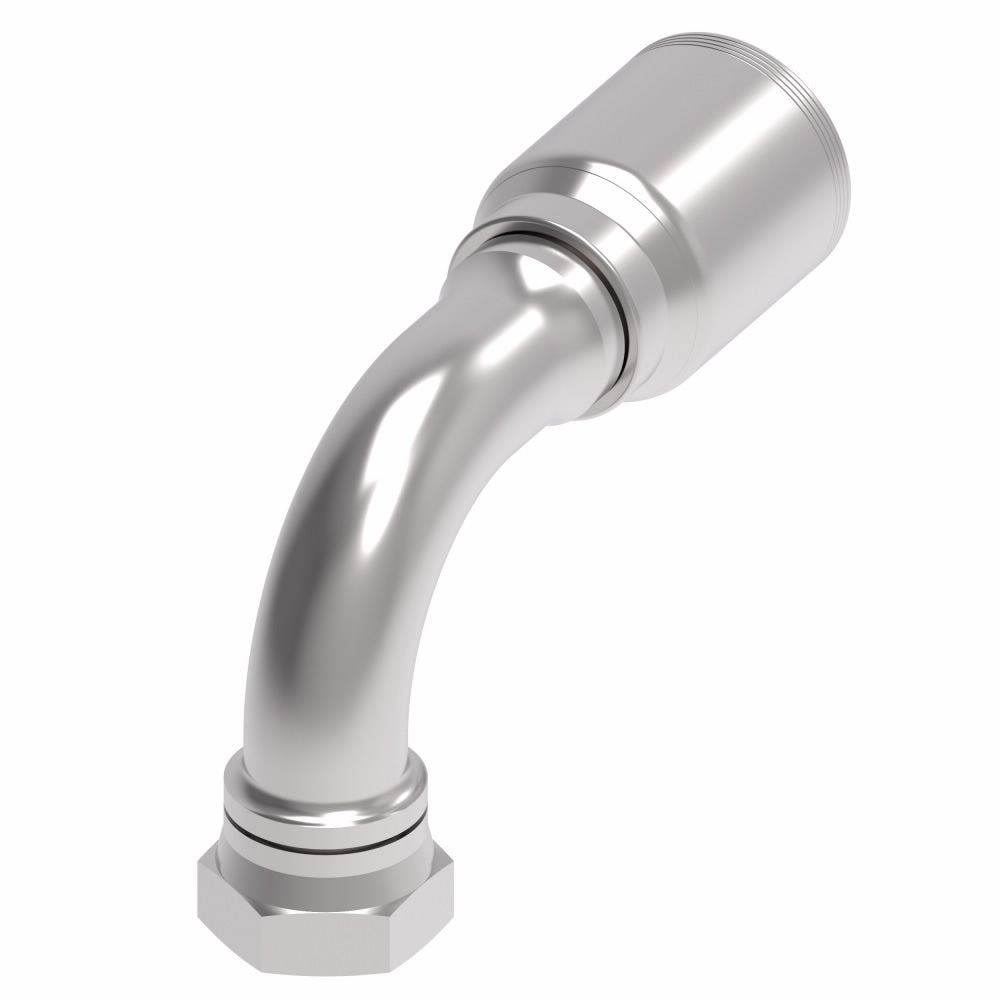

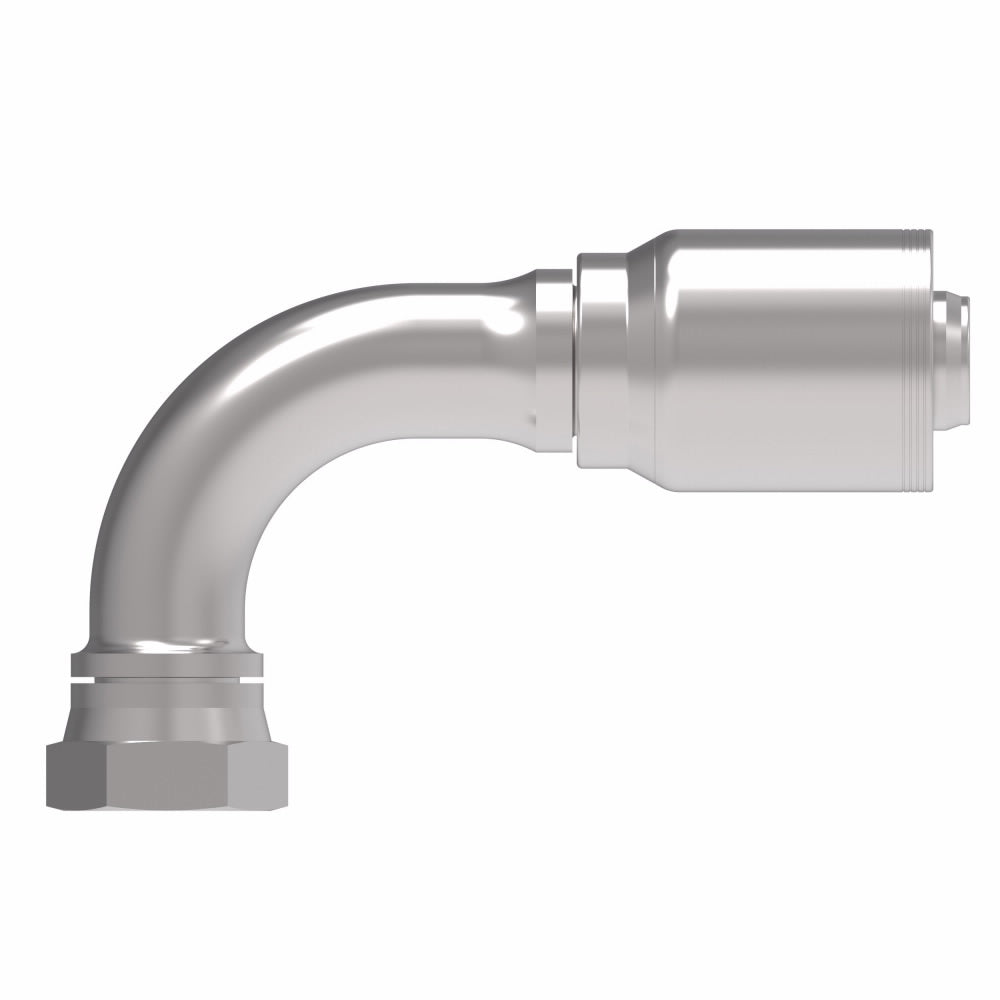

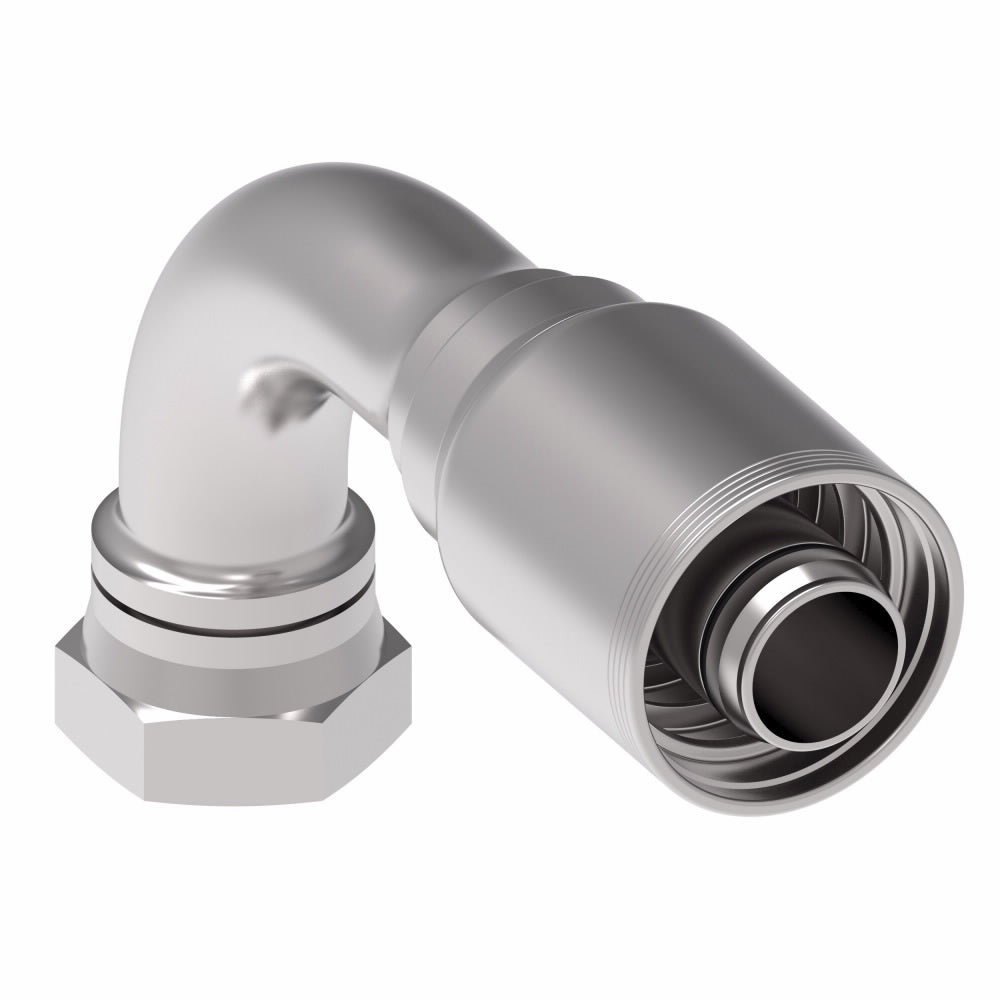

Danfoss 4SA24FJB24 Conexión Danfoss 4SA24FJB24 Conexión
Conexión
Danfoss
| Descripción | Ftng (perm), 4-sprl 4S JIC/37 FEM SW - 90 |
| Mangueras Compatibles | EC525-12 to -32; GH493-12 to FC636-12 to -32; FC736-12 to -32; FC500-12 to -24; FC273B-12,-16; GH506-12 to -32; FC254-12 to -32; EC810-12,-16; EC600-12,-16 H430-12 to -32; H430R-12 to -32; EC525-12 to -32; H471-12 to -24; H464-12 to -32; H485-16 |
| A (in) | 8,22 |
| A (mm) | 208,9 |
| D (in) | 5,15 |
| D (mm) | 130,8 |
| Gota (adentro) | 4,09 |
| Gota (milímetros) | 104 |
| Tamaño de rosca | 1 7/8-12 |
| Peso (libras) | 5,1502 |
