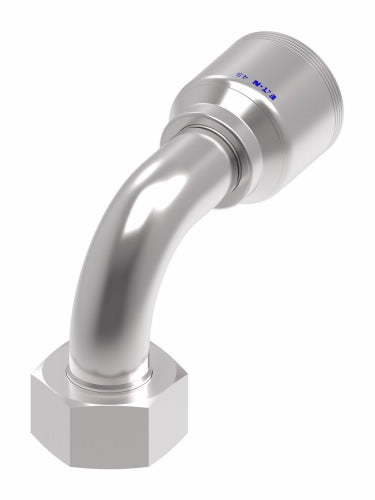

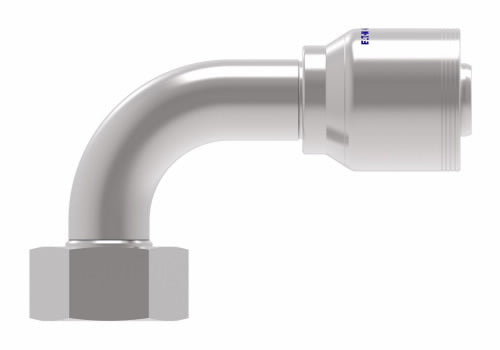

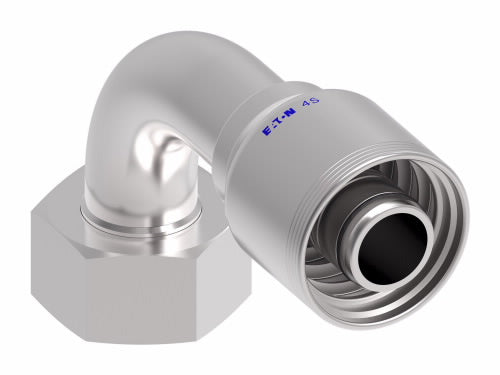

Danfoss 4S32DSB20 Conexión Danfoss 4S32DSB20 Conexión
Conexión
Danfoss
| Descripción |
Fem, SWV DIN 24 de Asiento, 90 Grados |
| Mangueras compatibles | EC525-12 to -32; GH493-12 to FC636-12 to -32; FC736-12 to -32; FC500-12 to -24; FC273B-12,-16; GH506-12 to -32; FC254-12 to -32; EC810-12,-16; EC600-12,-16 H430-12 to -32; H430R-12 to -32; EC525-12 to -32; H471-12 to -24; H464-12 to -32; H485-16 |
| A (in) | 6,02 |
| A (mm) | 153 |
| D (in) | 3,86 |
| D (mm) | 98 |
| Gota (adentro) | 3,5 |
| Gota (milímetros) | 89 |
| Tamaño de rosca | M52X2 |
| Peso (libras) | 3,285 |
