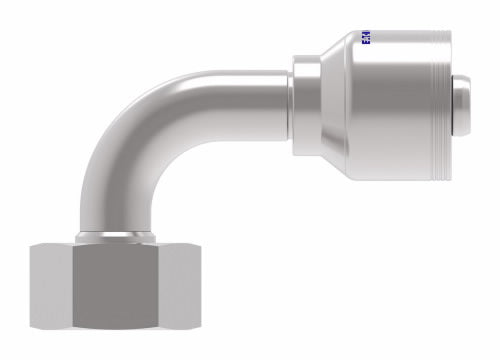

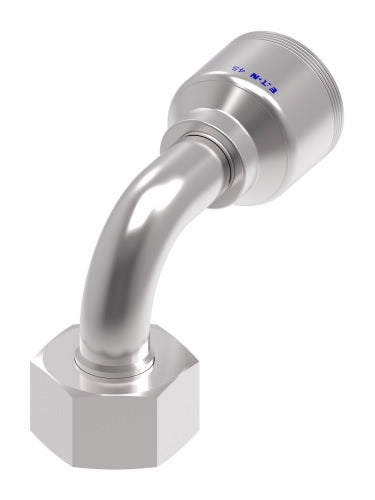

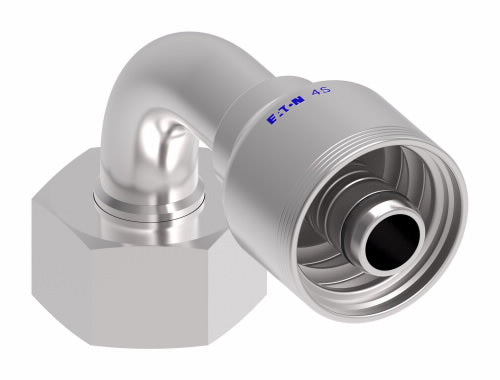

Danfoss 4S20DSB12 Conexión Danfoss 4S20DSB12 Conexión
Conexión
Danfoss
| Descripción | Ftng (perm), 4-sprl, DKOS, steel 90 DEG |
| Mangueras compatibles |
EC525-12 to -32; GH493-12 to FC636-12 to -32; FC736-12 to -32; FC500-12 to -24; FC273B-12,-16; GH506-12 to -32; FC254-12 to -32; EC810-12,-16; EC600-12,-16 H430-12 to -32; H430R-12 to -32; EC525-12 to -32; H471-12 to -24; H464-12 to -32; H485-16
|
| A (in) | 4,09 |
| A (mm) | 103,9 |
| D (in) | 2,67 |
| D (mm) | 67,7 |
| Gota (adentro) | 2,56 |
| Gota (milímetros) | 65 |
| Tamaño de rosca | M36X2 |
| Peso (libras) | 1,85 |
