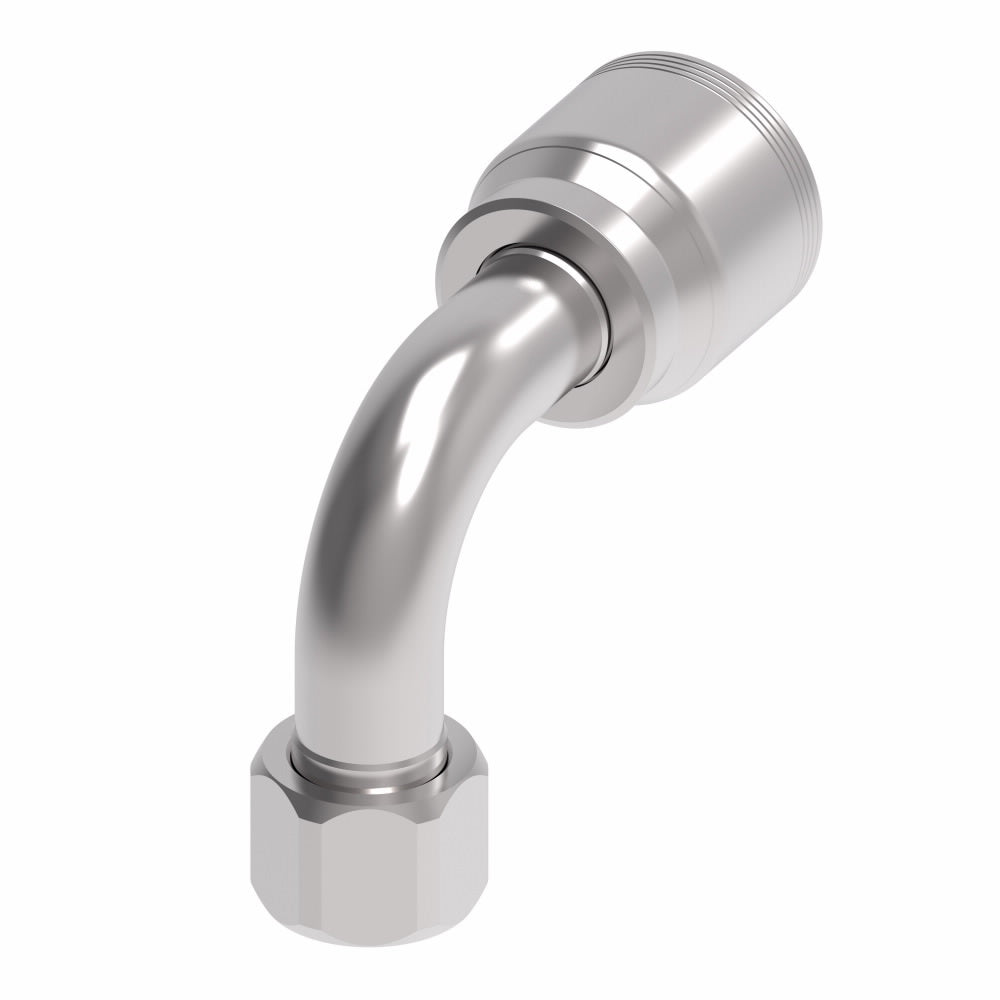

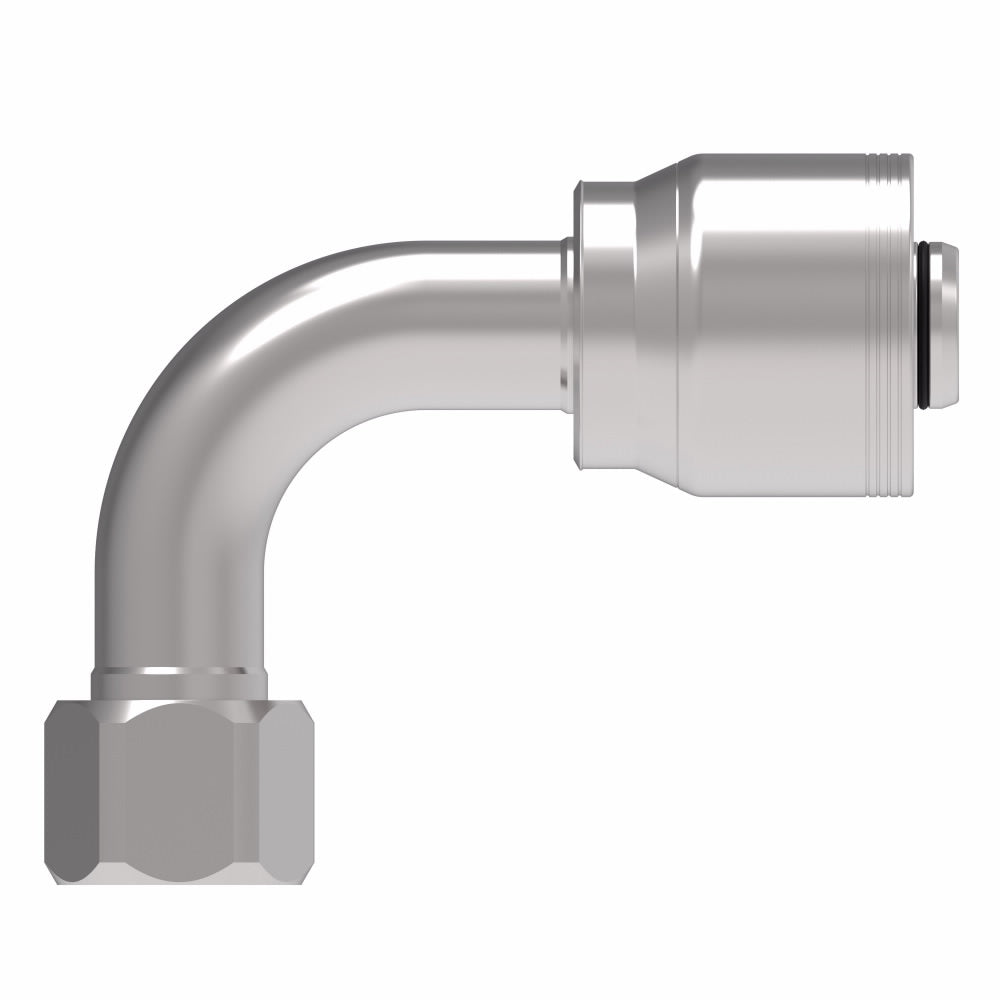

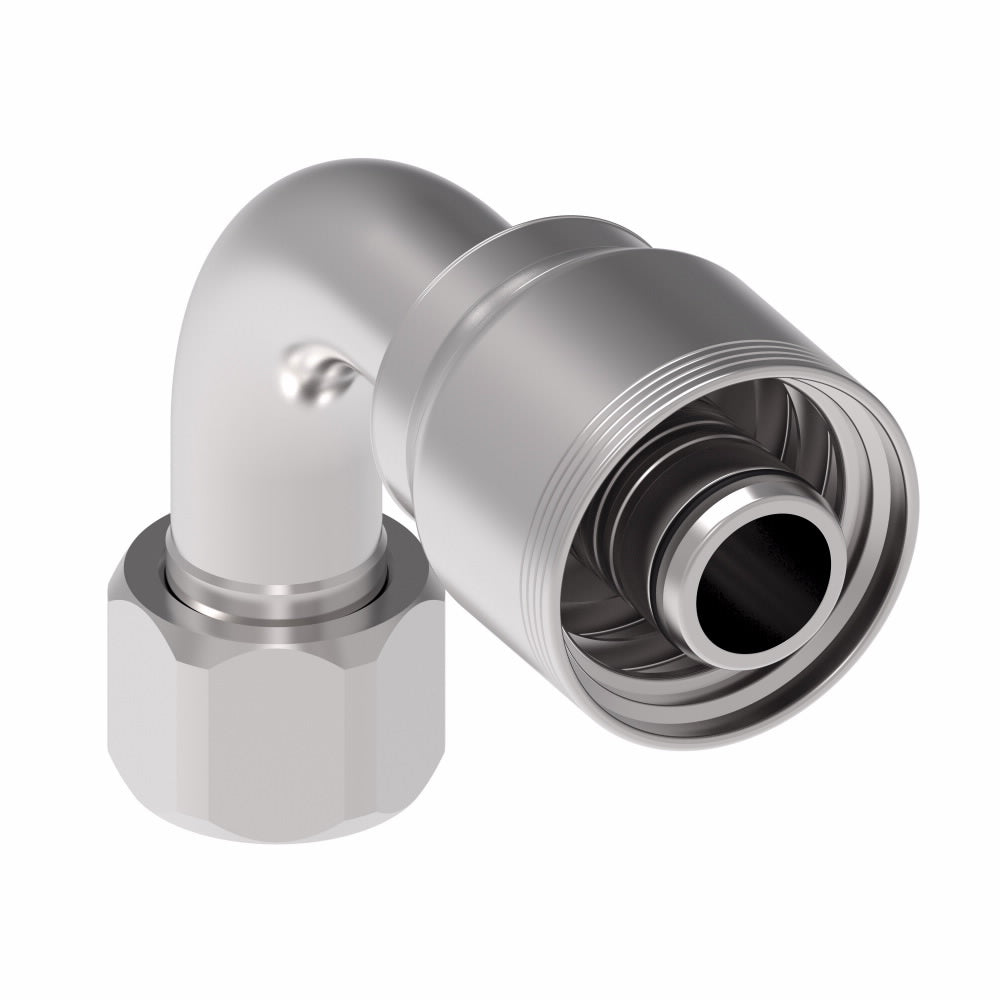

Danfoss 4SA16FJB16 Conexión Danfoss 4SA16FJB16 Conexión
Conexión
Danfoss
| Descripción | Ftng (perm) 4-sprl, steel 90 DEG |
| Mangueras Compatibles | EC525-12, -16, -20; GH493-12, -16, -20; FC636-12, -16, -20; FC736-12, -16, -20; FC500-12, -16; FC273-12, -16FC273B-12, -16; GH506-12, -16, -20; GH755-12, -16;FC254-12, 16, -20; EC810-12, -16; EC600-12 |
| A (in) | 4,45 |
| A (mm) | 113,1 |
| D (in) | 2,89 |
| D (mm) | 73,5 |
| Gota (adentro) | 2,8 |
| Gota (milímetros) | 71 |
| Tamaño de rosca | 1 5/16-12 |
| Peso (libras) | 1,5 |
