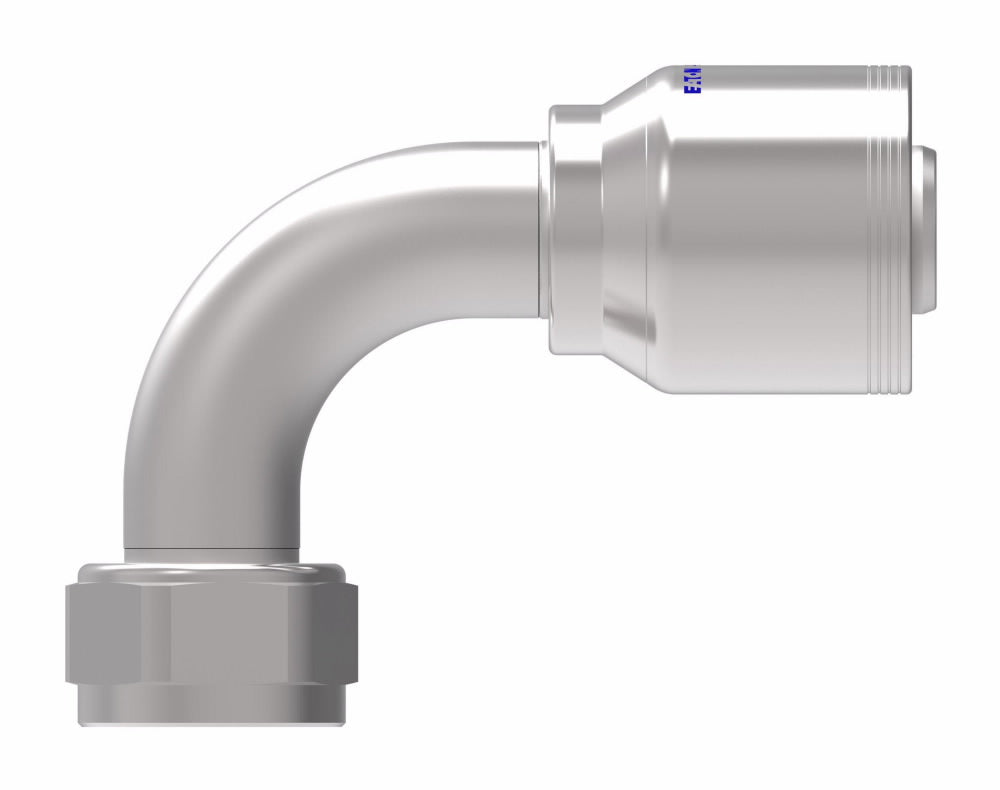

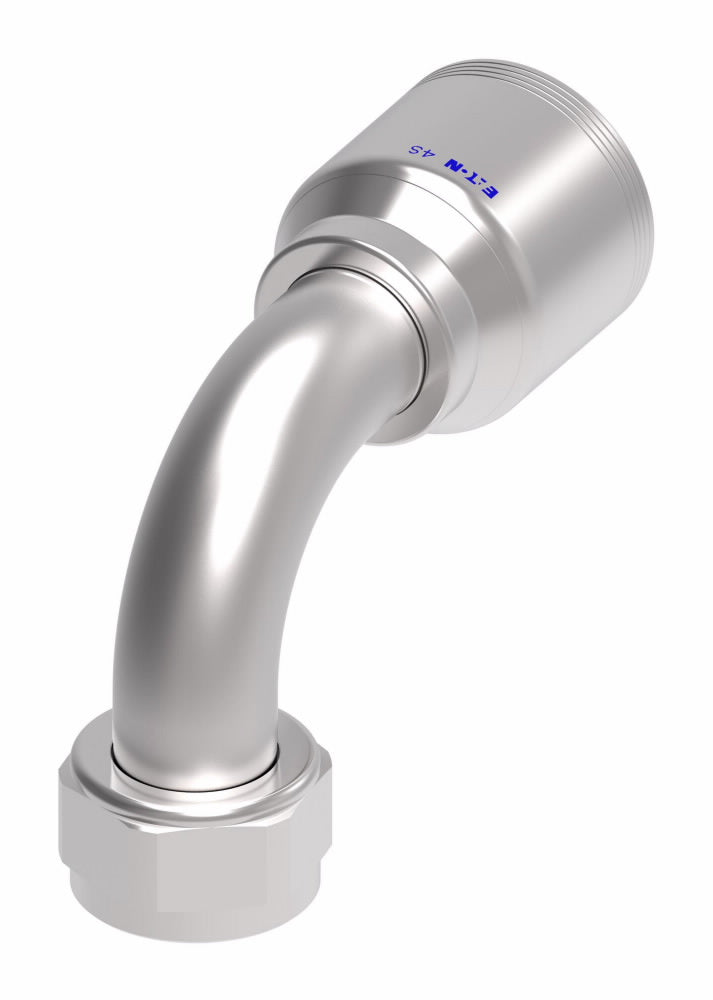

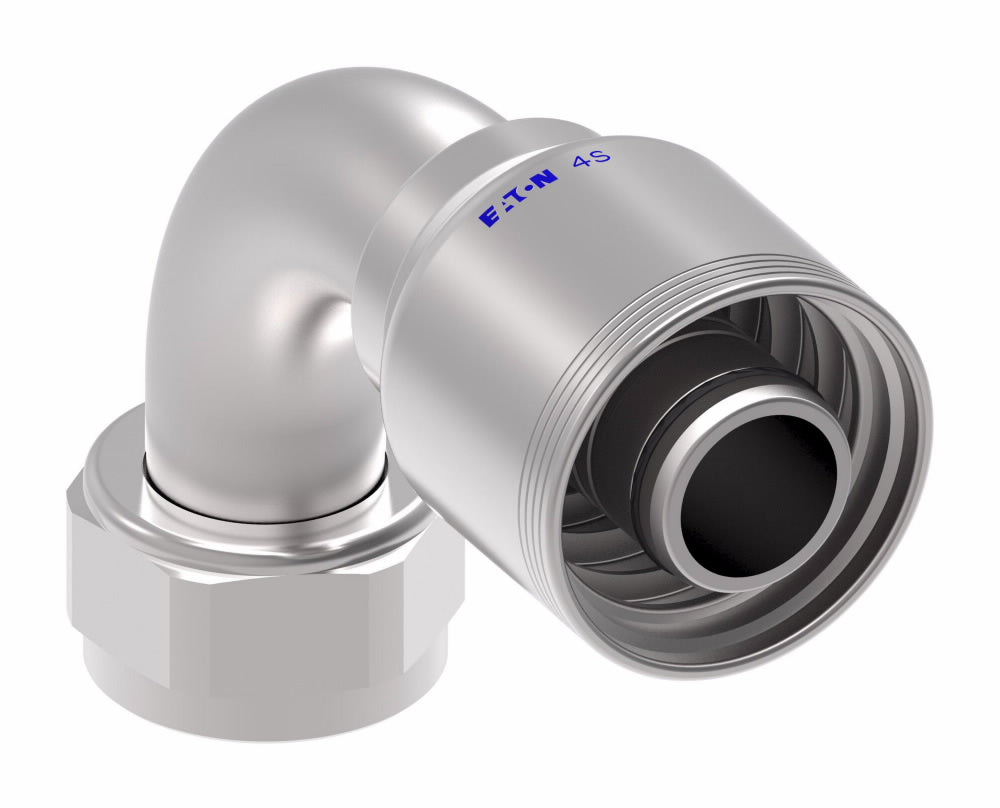

Danfoss 4SA20FJB20 Conexión Danfoss 4SA20FJB20 Conexión
Conexión
Danfoss
| Descripción | Ftng (perm) 4-sprl, steel 90 DEG |
| Mangueras Compatibles | EC525-12 to -32; GH493-12 to FC636-12 to -32; FC736-12 to -32; FC500-12 to -24; FC273B-12,-16; GH506-12 to -32; FC254-12 to -32; EC810-12,-16; EC600-12,-16 H430-12 to -32; H430R-12 to -32; EC525-12 to -32; H471-12 to -24; H464-12 to -32; H485-16 |
| A (in) | 5,22 |
| A (mm) | 132,6 |
| D (in) | 3,05 |
| D (mm) | 77,4 |
| Gota (adentro) | 3,07 |
| Gota (milímetros) | 78 |
| Tamaño de rosca | 1 5/8-12 |
| Peso (libras) | 2,44 |
