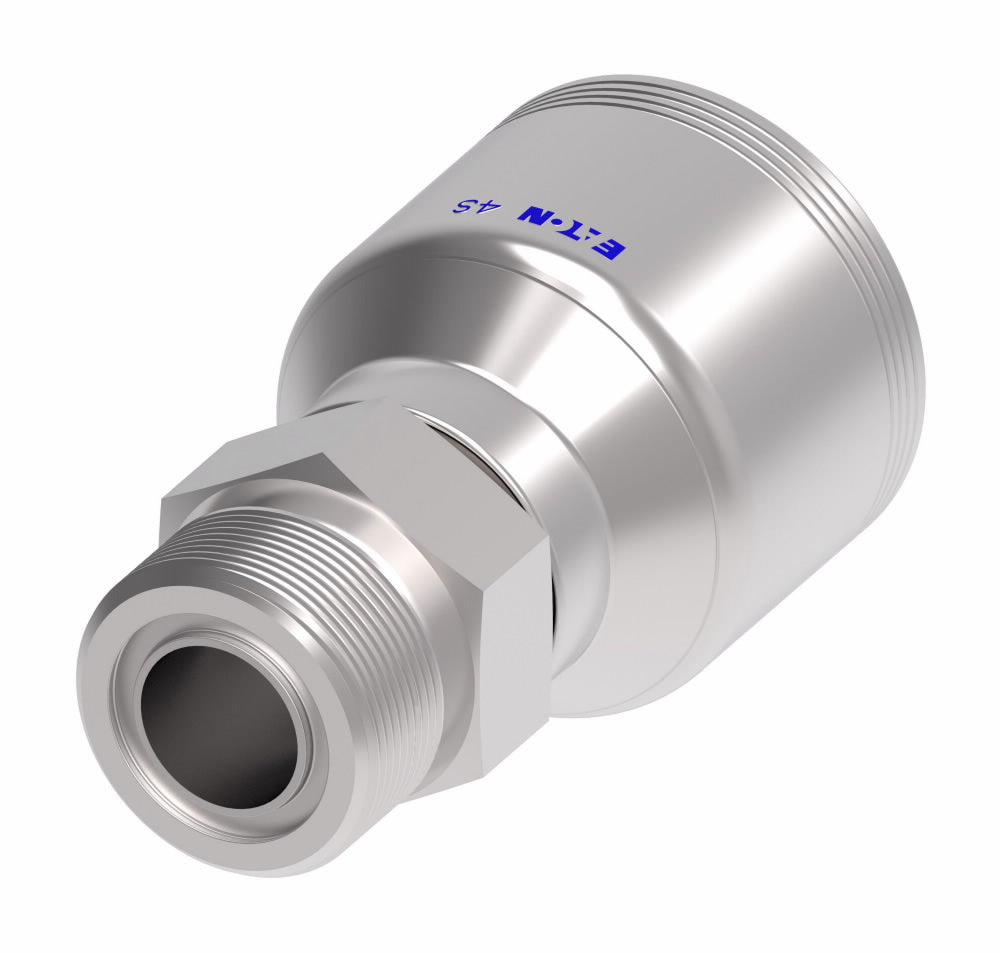

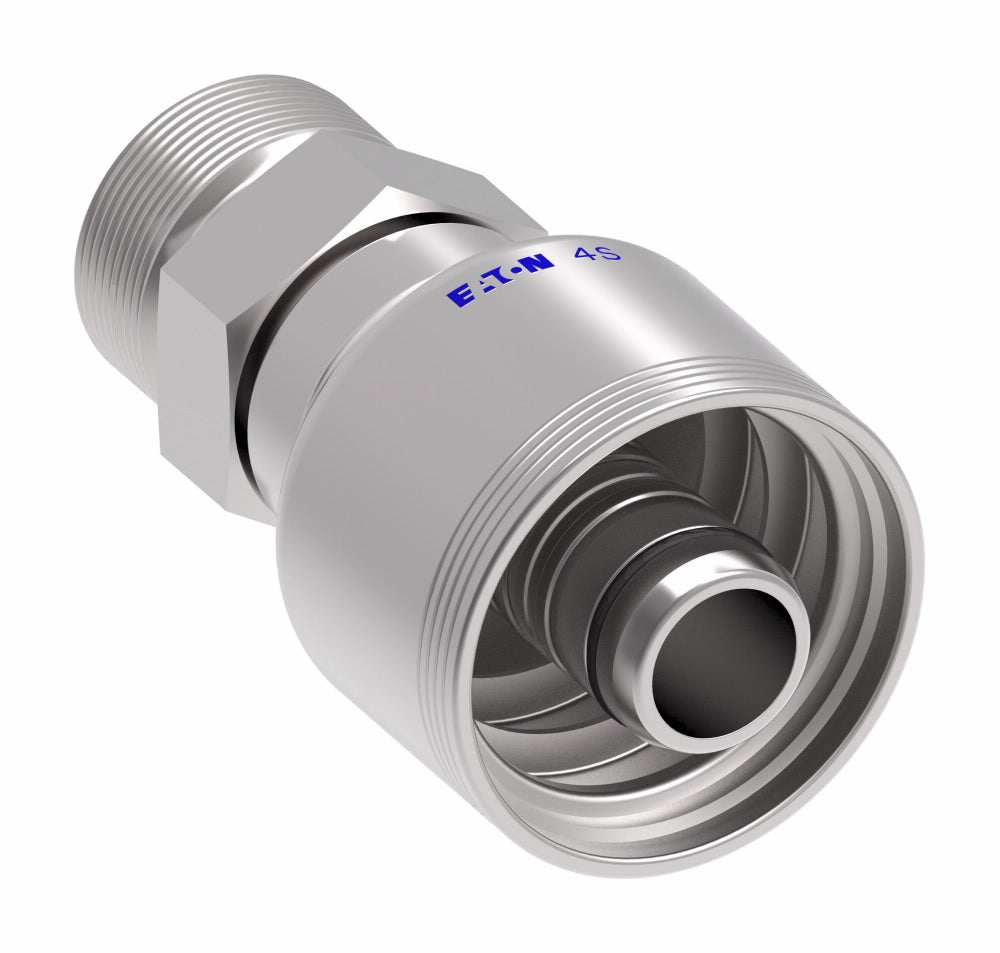

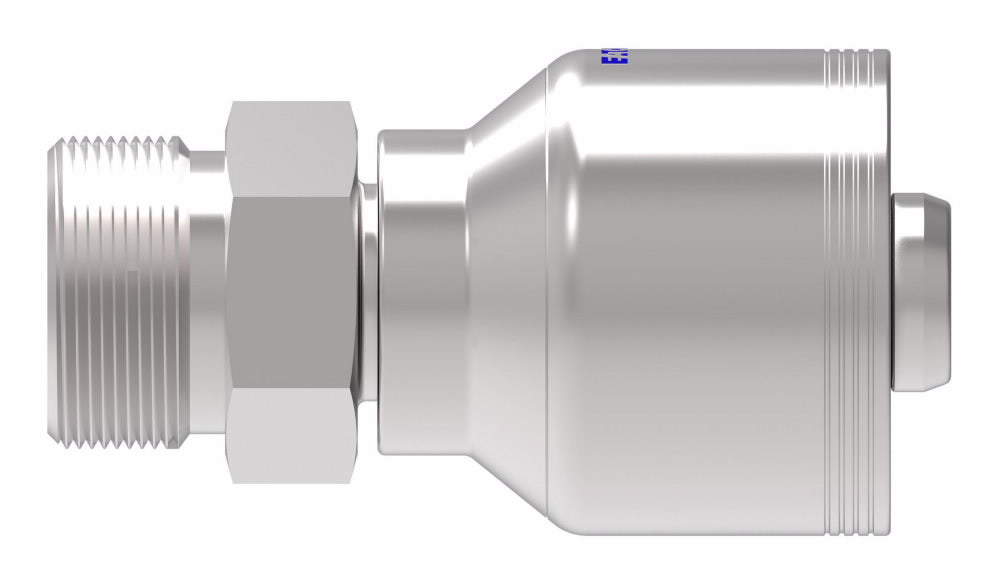

Danfoss 4SA16MR12 Conexión Danfoss 4SA16MR12 Conexión
Conexión
Danfoss
| Descripción | Ftng (perm), 4-sprl, ORS, steel, Macho |
| Mangueras compatibles |
EC525-12 to -32; GH493-12 to FC636-12 to -32; FC736-12 to -32; FC500-12 to -24; FC273B-12,-16; GH506-12 to -32; FC254-12 to -32; EC810-12,-16; EC600-12,-16 H430-12 to -32; H430R-12 to -32; EC525-12 to -32; H471-12 to -24; H464-12 to -32; H485-16
|
| A (in) | 3,08 |
| A (mm) | 78,2 |
| D (in) | 1,65 |
| D (mm) | 41,9 |
| Tamaño de rosca | 1-11 1/2 |
| Peso (libras) | 0,81 |
